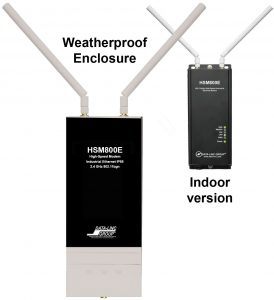

工業(yè)直序擴(kuò)頻無線電臺HSM800E – High-Speed 802.11b/g/n Modem

HSM800E

License-free, 2.412 GHz ~ 2.462 GHz ISM band
FCC: 2.412 GHz ~ 2.462 GHz
NCC: 2.412 GHz ~ 2.462 GHz
CE: 2.412 GHz ~ 2.472 GHz
Included
CD User Manual
Antenna 2 weatherproof 5dBi 2×2 MIMO antennae
Power Injector, 24 VDC Power Supply
Other 2 Hose Clamps for mounting, Ground Wire
Optional
HSM65-DRK: DIN Rail Clip Kit
POE-DRK: Power Injector Mounting Kit
Transmitter
Maximum range standard LOS: 4 miles/ 6.4 km
RF Output Power: Up to 27dB, 500 mW per transmitter (30dB combined transmitted power equal to 1 Watt)
Modulation
CCK / DSSS / BPSK / QPSK / DQPSK / DBPSK / 16-QAM / 64-QAM
Channel Bandwidth
20 MHz, 40 MHz
Receiver Sensitivity
-96dBm to -90dBm (802.11b)
-94dBm to -75dBm (802.11g)
-94dBm to -74dBm (802.11n, 20MHz)
-91dBm to -71dBm (802.11n, 40MHz)
RF Encryption
Shared key 64/128/152-bits WEP, WPA, WPA2, WPA-PSK (TKIP), WPA2-PSK (AES)
RF Data Rate Up to 300 Mbps
Operating Modes
Access Point (AP), Wireless Client (WC), Access Point/Repeater (APR) and WDS Bridge
Data Throughput
RF Data Rate to 300 Mbps — Throughput depends upon range and link quality
Interface
Antenna Reverse polarity SMA connector, female, 50Ω
Data RJ45, 10/100 Auto-MDIX
Indicators— Status LED’s including Power, WAN, LAN, (RSSI indicators)* Low, Medium, High
Power
Input Voltage 15-28VDC
Operating Environment
Humidity 0-90% non-condensing humidity
Temp -30 to +70o C (-22 to +158o F)
Enclosure
Standard Injection Molded IP65 weatherproof Dimensions 9.98″ X 10.80″ X 1.256″ (25.604 cm X 11.098 cm X 3.393 cm )
Shipping Weight 2.90 lb. (1.319 kg)
Certifications
FCC and CE

* Received Signal Strength Indicator

Specifcations subject to change without notice.
