EKI-7554SI

4+2SC 光纖端口寬溫網管型工業以太網交換機

• 2個SC型光纖端口，4個快速以太網端口
• 冗余：千兆X-Ring（超高速自愈時間<10ms）,RSTP/STP (802.1w/1D)
• 管理: Web, Telnet, 串口控制, SNMP
• 控制：VLAN/GVRP,QOS, IGMPSnooping/Query，LACP，限速
• 安全：IP/MAC和端口限制，DHCP服務器，IP訪問列表，802.1X,SNMPv3
• 診斷：端口統計，端口鏡像，RMON,Trap，Email報警，系統日志
• 雙12~48VDC冗余電源輸入和1路繼電器輸出
• 支持-40 ~ 75° C 寬工作溫度
•

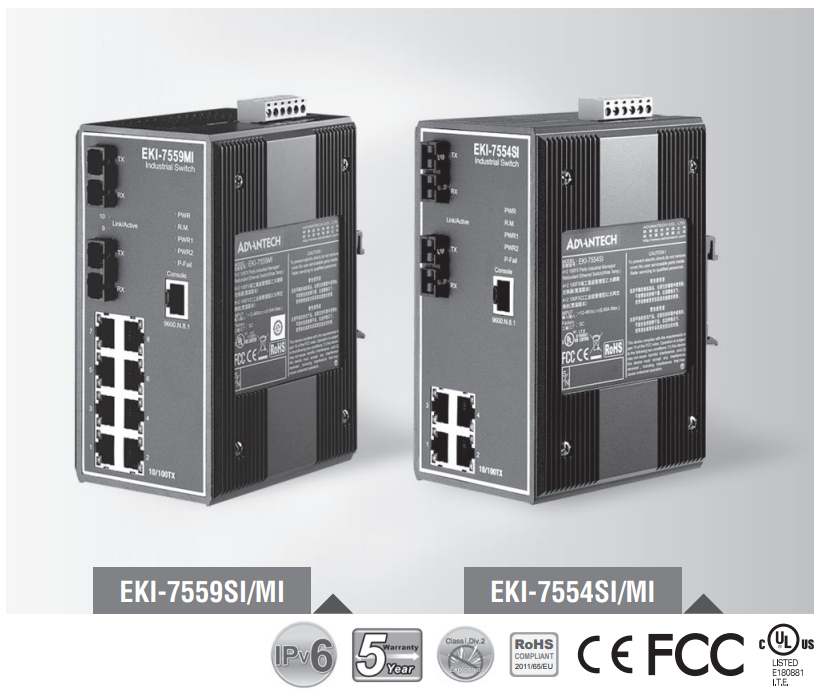

• EKI-7554SI/MI 及EKI-7559SI/MI支持2 個SC 型光纖端口， EKI-7554SI/MI支持4個快速以太網端口，EKI-7559SI/MI則最多可以支持8個快速以太網端口。為了確保網絡的可靠性，EKI-7554SI/MI支持研華X-Ring 冗余網絡協議，讓使用者非常方便地建立冗余以太網絡，該網絡具備小于10 毫秒的超高速自愈時間。此外，EKI-7554SI/MI還支持多種先進的網絡標準，增強網絡的安全性，簡化維護程序。
•

主要特性

2 x SC-type fiber ports, plus 4 Fast Ethernet ports Redundancy: X-Ring (high-speed recovery time<10ms), RSTP/STP (802.1w/1D) Management: Web, Telnet, Serial Console, SNMP Control: VLAN/GVRP, QoS, IGMP Snooping/Query, LACP, Rate Limit Security: IP/MAC, port binding, DHCP Server, IP access list, 802.1X, SNMPv3 Diagnostic: Port Statistic, Port Mirroring, RMON, Trap, Email Alert, Syslog Dual 12 ~ 48 VDC power input and 1 Relay Output Supports wide operating temperature -40 ~ 75° C
產品介紹
EKI-7554SI/MI support 2 SC type Fiber ports, and 4 Fast Ethernet ports can support up to 8 Fast Ethernet ports. To create reliability in your network, the EKI-7554SI/MI come equipped with a proprietary redundant network protocol -- X-Ring that was developed by Advantech, which provides users with an easy way to establish a redundant Ethernet network with ultra high-speed recovery time less than 10 ms. Furthermore, EKI-7554SI/MI also supports many advanced network standards to optimize network performance, ease maintenance issues, and secure network safety.

性能指標

		EKI-7554SI	EKI-7554MI
General	Ethernet Connectors	4x RJ-45 + 2 SC type fiber optic connectors	4x RJ-45 + 2 SC type fiber optic connectors
	Mounting	DIN-rail, Wall	DIN-rail, Wall
I/O	Transmission Distance	Ethernet : Up to 100m  Single-mode Fiber: Up to 30km	Ethernet : Up to 100m Multi-mode Fiber: Up to 2km
	Transmission Speed	Ethernet: Up to 100Mbps Fiber: Up to 100Mbps	Ethernet: Up to 100Mbps Fiber: Up to 100Mbps
Environment	Operating Temperature	-10 ~ 60°C (14 ~ 140°F)	-40 ~ 75°C (-40 ~ 167°F)
	Storage Temperature	-40 ~ 85° C (-40 ~ 185° F)	-40 ~ 85° C (-40 ~ 185° F)
Power Supply	Power Connector	6-pin removables crew terminal	6-pin removable crew terminal
	Power Input	12~ 48 VDC, redundant dual inputs	12~ 48 VDC, redundant dual inputs







訂購信息
產品型號 產品描述
EKI-7554SI  4+2 SM Fiber Managed Ethernet Switch w/Wide Temp
EKI-7554MI  4+2 MM Fiber Managed Ethernet Switch w/Wide Temp

EKI-7554MI    寬溫型4 +2個SC多模光纖口網管型冗余工業以太網交換機
EKI-7554SI    寬溫型4 +2個SC單模光纖口網管型冗余工業以太網交換機
