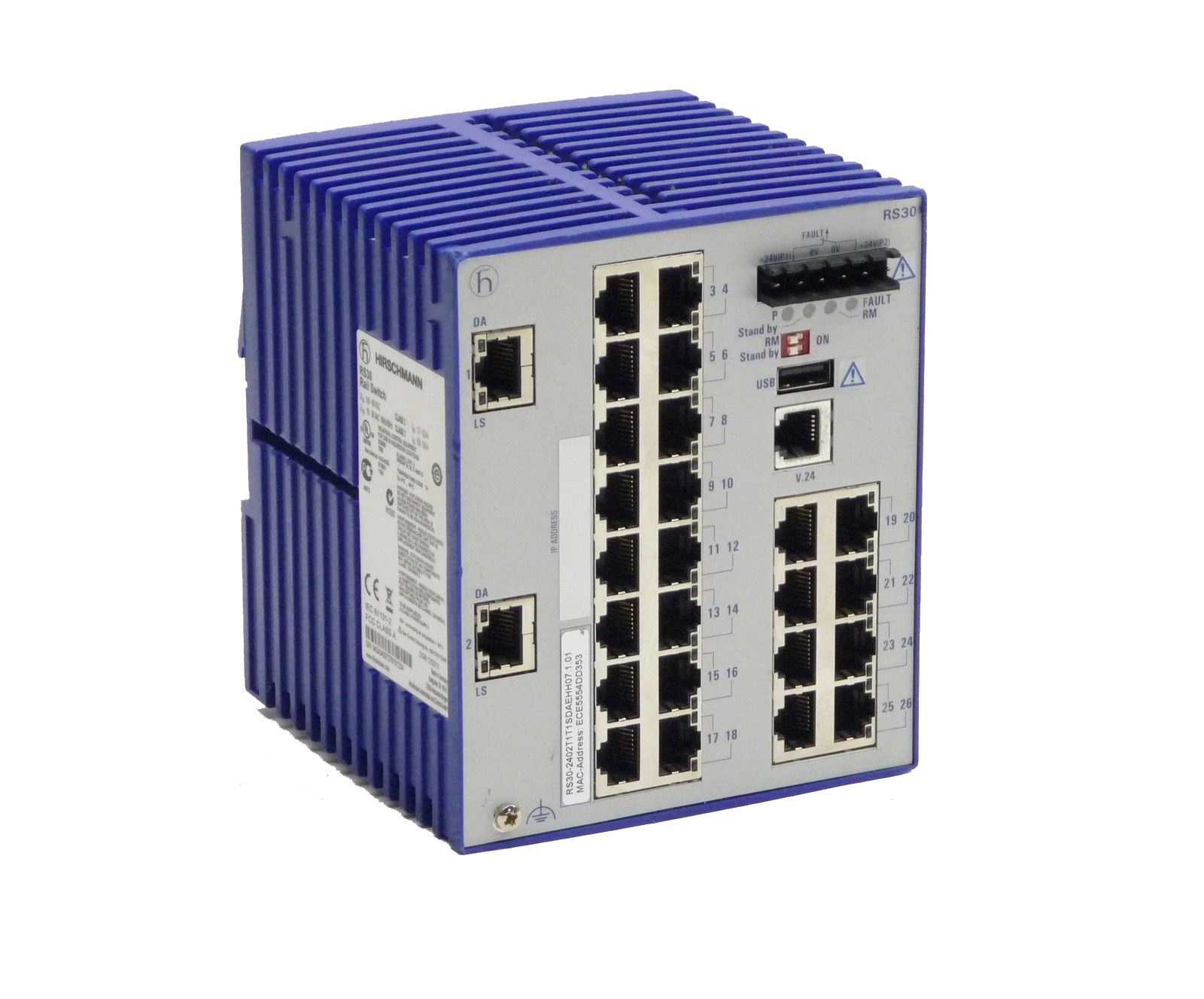

        赫斯曼交換機RS30-2402T1T1SDAEHC




        產品編號：201881319856


        產品價格：￥


        產品描述：赫斯曼交換機RS30-2402T1T1SDAEHC




















    產品介紹







        Product description


        Description
26 port Gigabit/Fast-Ethernet-Switch (2 x Gigabit Ethernet, 24 x Fast Ethernet), managed, software Layer 2 Enhanced, for DIN rail store-and-forward-switching, fanless design



        Port type and quantity
26 Ports in total, 2 Gigabit Ethernet ports; 1. uplink: 10/100/1000BASE-TX, RJ45; 2. uplink: 10/100/1000BASE-TX, RJ45; 24 x standard 10/100 BASE TX, RJ45



        Type
RS30-2402T1T1SDAEHC



        Order No.
943 434-037








        More Interfaces


        Power supply/signaling contact
1 x plug-in terminal block, 6-pin



        V.24 interface
1 x RJ11 socket



        USB interface
1 x USB to connect the AutoConfiguration Adapter ACA21-USB








        Network size - length of cable


        Twisted pair (TP)
0 m ... 100 m








        Network size - cascadibility


        Line - / star topology
any



        Ring structure (HIPER-Ring) quantity switches
50 (reconfiguration time < 0.3 sec.)








        Power requirements


        Operating voltage
12/24/48 V DC (9,6-60) V and 24 V AC (18-30) V (redundant)



        Current consumption at 24 V DC
654 mA



        Current consumption at 48 V DC
327 mA



        Power output in Btu (IT) h
53.6








        Software


        Management
TFTP; LLDP (802.1AB); V.24; HTTP; Traps; SNMP v1/v2/v3; Telnet



        Diagnostics
Management Address Conflict Detection; Address Relearn Detection; Signal Contact; Device Status Indication; LEDs; Syslog; Duplex Mismatch Detection; RMON (1,2,3,9); Port Mirroring 1:1; Port Mirroring 8:1; System Information; Self-Tests on Cold Start; SFP Management; Switch Dump



        Configuration
AutoConfiguration Adapter ACA11 Limited Support (RS20/30/40, MS20/30); Automatic Configuration Undo (roll-back); Configuration Fingerprint; BOOTP/DHCP Client with Auto-Configuration; AutoConfiguration Adapter ACA21/22 (USB); HiDiscovery; DHCP Relay with Option 82; Command Line Interface (CLI); Full-featured MIB Support; Web-based Management; Context-sensitive Help



        Security
IP-based Port Security; MAC-based Port Security; Access to Management restricted by VLAN; SNMP Logging; Local User Management



        Redundancy functions
HIPER-Ring (Manager); HIPER-Ring (Ring Switch); Media Redundancy Protocol (MRP) (IEC62439-2); Redundant Network Coupling; RSTP 802.1D-2004 (IEC62439-1); RSTP Guards; RSTP over MRP



        Industrial Profiles
EtherNet/IP Protocol; PROFINET IO Protocol



        Time synchronisation
SNTP server and client



        Miscellaneous
Manual Cable Crossing



        Switching
Disable Learning (hub functionality); Independent VLAN Learning; Fast Aging; Static Unicast/Multicast Address Entries; QoS / Port Prioritization (802.1D/p); TOS/DSCP Prioritization; Egress Broadcast Limiter per Port; Flow Control (802.3X); VLAN (802.1Q); IGMP Snooping/Querier (v1/v2/v3)








        Ambient conditions


        Operating temperature
0 oC ... 60 oC



        Storage/transport temperature
-40 oC ... 70 oC



        Relative humidity (non-condensing)
10 % ... 95 %



        MTBF
33.5 years (MIL-HDBK-217F)



        Protective paint on PCB
No








        Mechanical construction


        Dimensions (W x H x D)
110 mm x 131 mm x 111 mm



        Mounting
DIN Rail



        Weight
600 g



        Protection class
IP20








        Mechanical stability


        IEC 60068-2-27 shock
15 g, 11 ms duration, 18 shocks



        IEC 60068-2-6 vibration
1 mm, 2 Hz-13.2 Hz, 90 min.; 0.7 g, 13.2 Hz-100 Hz, 90 min.; 3.5 mm, 3 Hz-9 Hz, 10 cycles, 1 octave/min.; 1 g, 9 Hz-150 Hz, 10 cycles, 1 octave/min








        EMC interference immunity


        EN 61000-4-2 electrostatic discharge (ESD)
6 kV contact discharge, 8 kV air discharge



        EN 61000-4-3 electromagnetic field
10 V/m (80-1000 MHz)



        EN 61000-4-4 fast transients (burst)
2 kV power line, 1 kV data line



        EN 61000-4-5 surge voltage
power line: 2 kV (line/earth), 1 kV (line/line), 1 kV data line



        EN 61000-4-6 conducted immunity
3 V (10 kHz-150 kHz), 10 V (150 kHz-80 MHz)








        EMC emitted immunity


        FCC CFR47 Part 15
FCC 47 CFR Part 15 Class A



        EN 55022
EN 55022 Class A








        Approvals


        Safety of industrial control equipment
cUL 508



        Hazardous locations
ISA 12.12.01 Class 1 Div. 2



        Shipbuilding
n/a



        Railway norm
n/a



        Substation
n/a








        Scope of delivery and accessories


        Scope of delivery
Device, terminal block, operating manual
