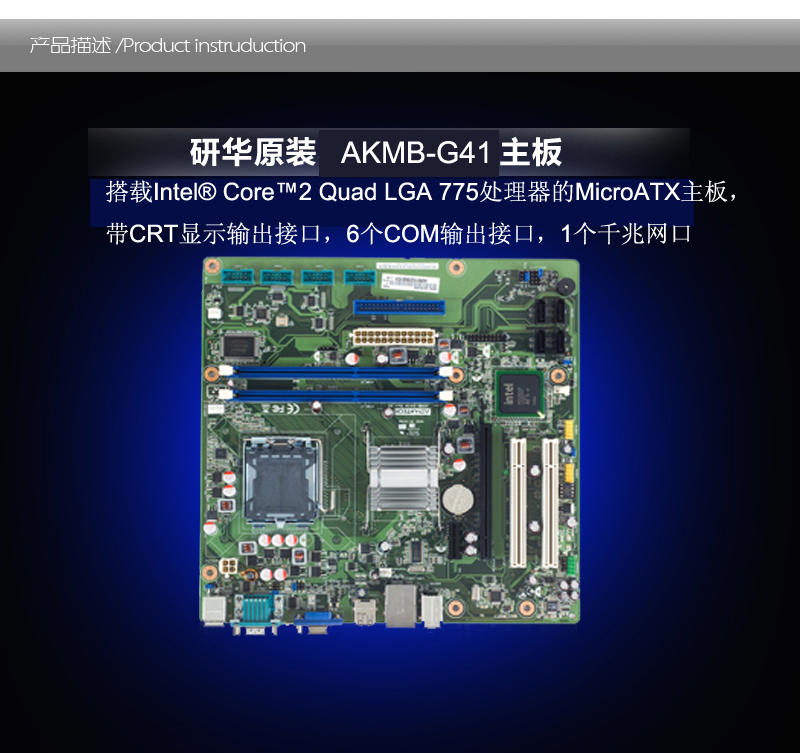

| AKMB-G41MF-00A1E |
| |
|
| Form Factor |
Form Factor |
Micro ATX |
| Processor |
CPU |
Intel Core 2 Quad Q9400 / Core 2 Duo E8500 / Pentium Daul-Core E6500 / Celeron E1500 |
| CPU TDP |
95W / 65W |
| Frequency |
2.2GHz ~ 3.16GHz |
| Core Number |
2 ~ 4 |
| L2 Cache |
512KB / 6MB |
| BIOS |
AMI 8Mbit |
| Chipset |
Intel G41 + ICH7 |
| Memory |
Technology |
DDR3 800/1066 MHz |
| Max. Capacity |
4GB |
| Socket |
2 x 240-pin DIMM |
| Display |
Controller |
Intel Chipset integrated VGA controller (GMA X4500) |
| Graphic Engine |
DirectX 10 and Open GL 2.0 supported |
| Graphic Memory |
Intel GMA X4500 shared 352MB system memory |
| VGA |
Up to 1920 x 1080 (1080p/i) |
| Expansion |
PCI Express x 16 |
1 |
| PCI Express x 1 |
1 |
| PCI |
2 |
| Ethernet |
Controller |
GbE1: RTL8111DL |
| Speed |
10/ 100/ 1000 Mbps |
| Connector |
RJ45 x 1 |
| Audio |
Audio Interface |
HD Audio |
| CODEC |
Realtek ALC662 |
| Connector |
3 (Line-in, Line out, Mic-in) |
| Watchdog Timer |
WatchDog Timer |
Yes |
| Storage |
SATA |
4 x SATAII (Max. Data Transfer Rate 300 MB/s) |
| IDE |
1 |
| I/O |
USB2.0 |
8 |
| COM Port |
6 ( 2 RS232 with 5V/12V, 4 x RS232) |
| Keypad |
1 |
| Power |
Power Type |
ATX |
| Connector |
ATX24P |
| Power Consumption (Idle) |
2.29A @ 5V / 0.18A @ 3.3V / 0.58A @ 12V / 0.09A @ 5Vsb / 0.25A @ -12V |
| Power Consumption (Full Load) |
2.98A @ 5V / 0.48A @ 3.3V / 3.48A @ 12V / 0.18A @ 5Vsb / 0.26A @ -12V |
| Battery |
Lithium 3 V / 200 mAh |
| Environment |
Operational Temperature |
0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing) |
| Non-Operational Temperature |
-40 ~ 85° C and 60° C @ 95% RH Non-Condensing |
| Vibration Resistance |
3.5 Grm (Non-Operation Mode) |
| Physical |
Dimension (mm) |
244 x 244 mm |
| Weight |
1.2 kg (2.64 lb), weight of total package |
| Operating System |
Microsoft Windows |
Yes |
| Linux |
Yes |
| SUSIAccess |
Yes |
| Certification |
EMC |
CE, FCC |
