Intel? LGA775 Core?2 Quad / Core?2 Duo ATX with VGA, 4 COM and Dual LAN
|
|
|
Main Features
- Intel LGA775 socket supports Intel? Core 2 Quad/Core 2 Duo/Pentium/Celeron processor
- Intel Q35 + ICH9R chipset
- Four 240-pin DDR2 800 MHz up to 8 GB
- Intel Graphics Media Accelerator 3100
- Realtek ALC888, 5.1 + 2 channel HD streaming audio
- Dual Realtek RTL8111C Gigabit LAN
- 1 PCIe x16, 1 PCIe x1, 5 PCI
- 4 COM (5/12 V), 12 USB, 6 SATA II, 1 IDE
- TPM 1.2, 16-bit GPIO
- Supports RAID 0, 1, 5, 10
|
|
|
Intel? LGA775 Core?2 Quad / Core?2 Duo ATX with VGA, 4 COM and Dual LAN
| |
SIMB-A01-6G200A1E |
| Processor System |
CPU |
Intel Core 2 Quad |
| L2 Cache |
6 MB |
| Chipset |
Intel Q45 + ICH10DO |
| BIOS |
Award 32 Mbit , SPI |
| Front Side Bus |
800/1066/1333 MHz |
| Expansion Slot |
PCI |
32-bit/33 MHz, 5 slots |
| PCIe x16 |
1 |
| PCIe x1 |
1 |
| Memory |
Technology |
Dual channel DDR2 667/800 MHz |
| Max. Capacity |
8 GB |
| Socket |
4 x 240-pin SODIMM |
| Graphics |
Controller |
Intel Graphics Media Accelerator |
| VRAM |
Intel DVMT 4.0 supports up to 284 MB Video Memory |
| VGA |
On board GMA 3100 |
| LVDS |
Through ADD2 LVDS Card |
| DVI |
Through ADD2 DVI Card |
| HDMI |
Through ADD2 HDMI Card |
| Ethernet |
Interface |
10/100/1000 Mbps |
| Controller |
GbE LAN1: Realtek RTL8111C, GbE LAN2: Realtek RTL8111C |
| Connector |
2 x RJ-45 |
| SATA |
Max. Transfer Rate |
300 MB/s |
| Channel |
6 |
| EIDE |
Mode |
ATA 100/66/33 |
| Channel |
1 (support up to 2 IDE devices) |

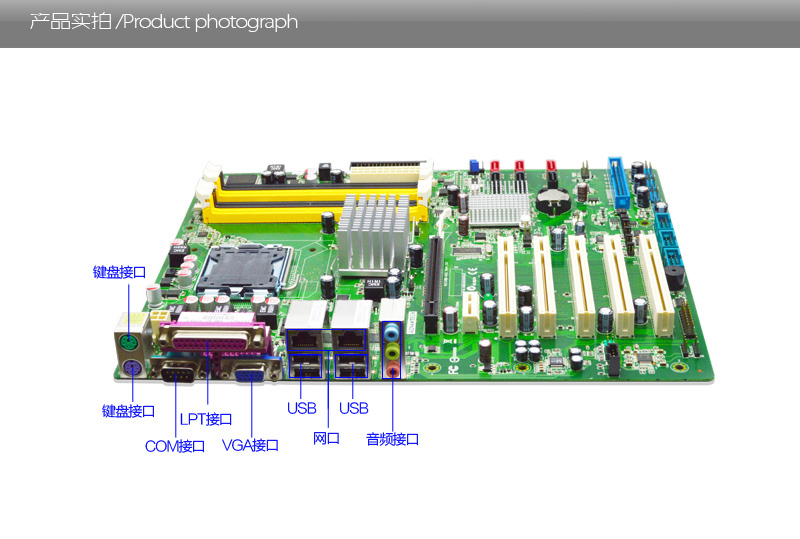

| Rear I/O Interface |
VGA |
1 |
| RJ-45 |
2 |
| USB |
4 (USB 2.0 compliant) |
| Audio |
3 (HD, Mic-in, Line-in, Line-out) |
| Parallel |
1 |
| COM |
1 (RS-232) |
| PS/2 |
2 |
| Internal Connectors |
USB |
8 |
| Serial |
3 (1 x RS-232/422/485 and2 x RS-232) |
| IDE |
1 |
| SATA |
6 |
| GPIO |
16-bit (8-bit DI and 8-bit DO) |
| Watchdog Timer |
Output |
System Reset |
| Interval |
Programmable 1 ~ 255 seconds |
| Security |
TPM |
TPM 1.2 by Infineon SLB9635 |
| Operating |
Temp |
0 ~ 50°C |
|
|

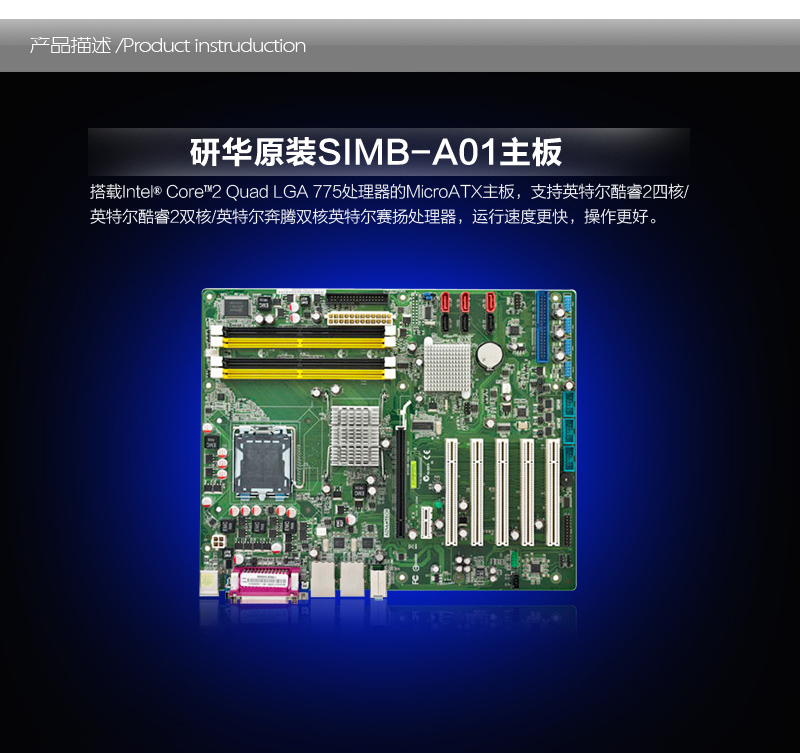

產品描述 |
|
 |
| |
SIMB-A01-6G200A1E |
Q35 + ICH9R, LGA775 ATX, VGA/2GbE/4COM
|
