NISE 105/105A3無風扇工業計算機
產品編號：201531812513
產品價格：￥
產品描述：NISE 105/105A3無風扇工業計算機采用最新一代 Intel? Atom? E3826處理器
|
|
|
產品介紹
購買電話：13581789724 王海旭 010-82827893/39-8004 詳情請登陸：www.getck.com.cn
購買電話：13581789724 王海旭 010-82827893/39-8004 詳情請登陸：www.getck.com.cn
購買電話：13581789724 王海旭 010-82827893/39-8004 詳情請登陸：www.getck.com.cn采用最新一代 Intel? Atom? E3826處理器 (代號 "Bay Trail-I"), NISE 105提供出色性能，不僅體現在運算性上還體現在圖形性能上，并提出了智能和工業運算解決方案的新機會。NISE 105 支持達 4G DDR3L 內存和多存儲設備可選，如CFast, HDD 和 SSD. NISE 105也是NISE 100系列產品的第一個支持 -20到 70度寬溫和9-30VDC 寬壓的產品.此外，NISE 105無線纜連接，使NISE 105 持續穩定運行在溫度和振動的嚴苛環境。NISE 105 擁有高集成性能，可選 Mini-PCIe模塊和 4 x COM 接口，適用多種實時智能系統，如工廠自動化應用(可選PROFIBUS, ProfiNET, DeviceNET, EtherCAT, Ethernet IP 主站模塊), 網絡應用 (可選 GbE LAN, Wi-Fi, 3.5G/4G LTE 模塊) 和通訊應用 (可選 GPIO, RS232/422/485)。 NISE 105 是M2M 智能系統和工廠自動化平臺的首選。
| CPU |
Onboard Intel? Atom? processor E3826 Dual Core, 1.46GHz Support Intel? Atom? E3800 processor family from Single Core E3815, Dual Core E3825/E3826/E3827 and Quad Core E3845 with difference SKUs |
| 內存 |
1 x DDR3L SO-DIMM Socket, Support DDR3L 1066/1333 4GB RAM max., un-buffered and non-ECC |
| 顯示選項 |
Dual Independent Display
- HDMI and DVI-D
- HDMI and VGA (via DVI-I to VGA converter) |

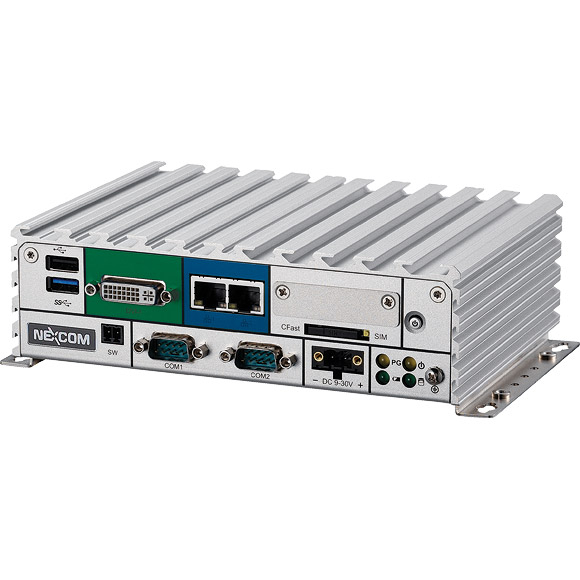

| 前置I/O界面 |
ATX power on/off switch 1 x Power Status/1 x HDD Access/1 x Battery Low/1 x Programing LEDs 1 x External CFast socket 1 x SIM Card holder 2 x Intel? I210IT GbE LAN Ports, support Wake on LAN, Teaming and PXE 1 x DVI-I Display Output 1 x USB3.0 (900mA per each) 1 x USB2.0 (500mA per each) 2 x DB9 for COM1 & COM2, both support RS232/422/485 with auto flow control
- Jumper-free setting on RS232/422/485
- Support 5V/12V/Ring function by jumper setting, Ring as the default (COM2 Only) 1 x Remote Power ON/OFF Switch 1 x 2-pin DC input, support +9 to 30VDC input |

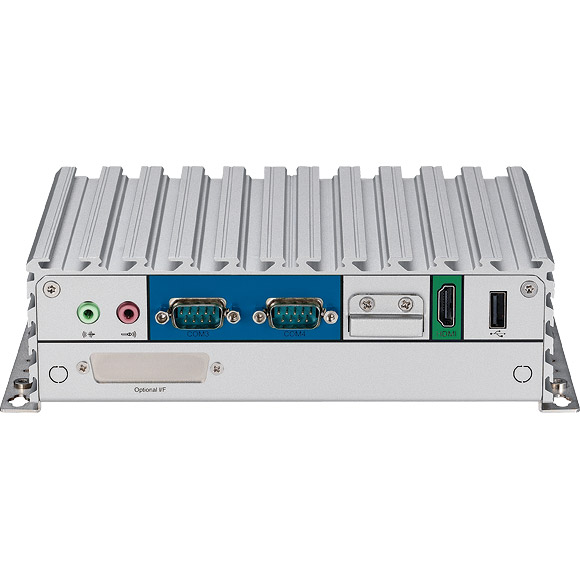

| 后置I/O界面 |
1 x USB2.0 1 x HDMI 1 x RTC Battery 2 x DB9 for COM3 & COM4
- NISE 105 : support RS232 only
- NISE 105A: support RS232/422/485 with auto flow control 1 x Mic-in & 1 x Line-out 2 x Antenna Holes for optional Wi-Fi/3.5G antenna 1 x Optional I/F for optional miniPCIe Wi-Fi/3.5G/Hilscher Automation module output |
| I/O界面 - 內部 |
4 x GPI and 4 GPO (5V, TTL Type) |
| 存儲設備 |
1 x CFast (SATA3.0) 1 x 2.5" HDD (SATA2.0) 1Mb NVRAM(on NISE105A Only) |
| 擴展槽 |
1 x Mini-PCIe socket for optional Wi-Fi/3.5G/Hilscher automation modules |
| 電源需求 |
Power input: +9VDC to +30VDC 1 x optional 24V, 60W power adapter |
| 操作系統支持 |
Windows 8, 32bit/64bit Windows Embedded Standard 8, 32bit/64bit Windows 7, 32bit/64bit Windows Embedded Standard 7, 32bit/64bit Windows Embedded Compact 7, 32bit Linux Kernel version 3.8.0 |
| 尺寸 |
185mm (W) x 131mm (D) x 54mm (H) without wall-mount bracket |
| 構造 |
Aluminum and Metal Chassis with fanless design |
| 運行環境 |
Operating Temperature:
Ambient with air flow: -20°C to 70°C with industrial grade device (According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14) Storage Temperature: -30°C to 85°C Relative Humidity: 10% to 95% (non-Condensing) Shock Protection:
- HDD: 20G, half sine, 11ms, IEC60068-27
- CFast: 50G, half sine, 11ms, IEC60068-27 Vibration Protection w/HDD Condition:
- Random: 0.5Grms @ 5~500 Hz, IEC60068-2-64
- Sinusoidal: 0.5Grms @ 5~500 Hz, IEC60068-2-6 Vibration Protection w/CFast & SSD Condition:
- Random: 2Grms @ 5~500 Hz, IEC60068-2-64
- Sinusoidal: 2Grms @ 5~500 Hz, IEC60068-2-6 |
| 認證 |
CE FCC Class A |
|
