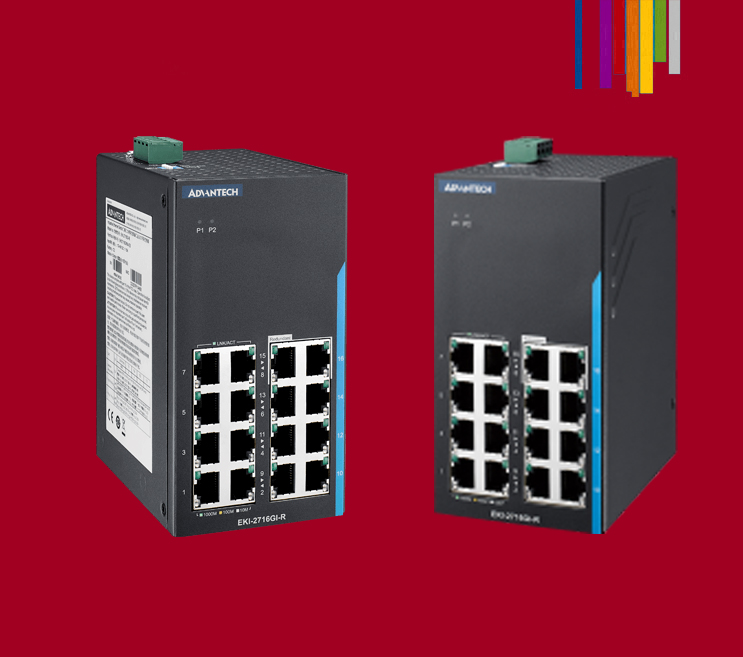

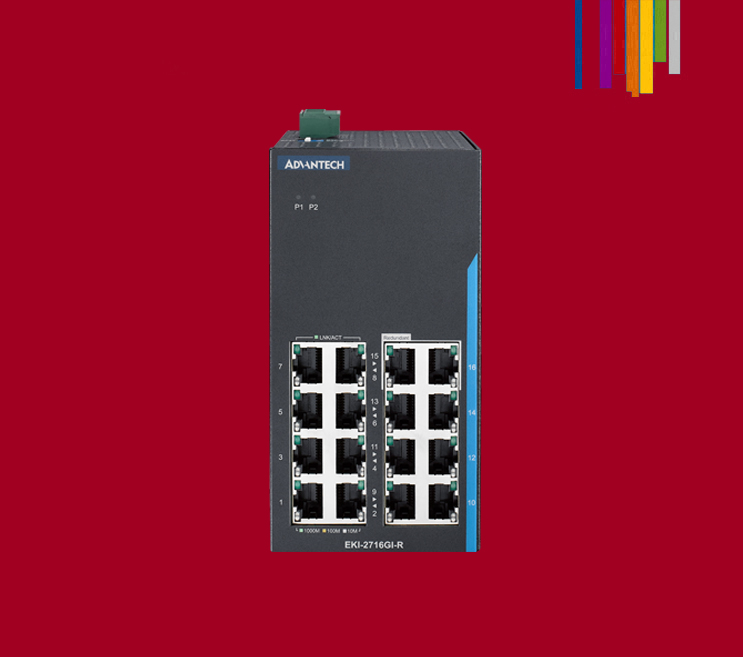

EKI-2716GI-R

16-port Gigabit Unmanaged Switch with Redundancy RSTP/STP/X-Ring

• Provides 16 Gigabit ports with Auto MDI/MDI-X
• Supports 16 x 10/100/1000 Mbps Auto-Negotiation
• Supports redundant 12 ~ 48 VDC power input

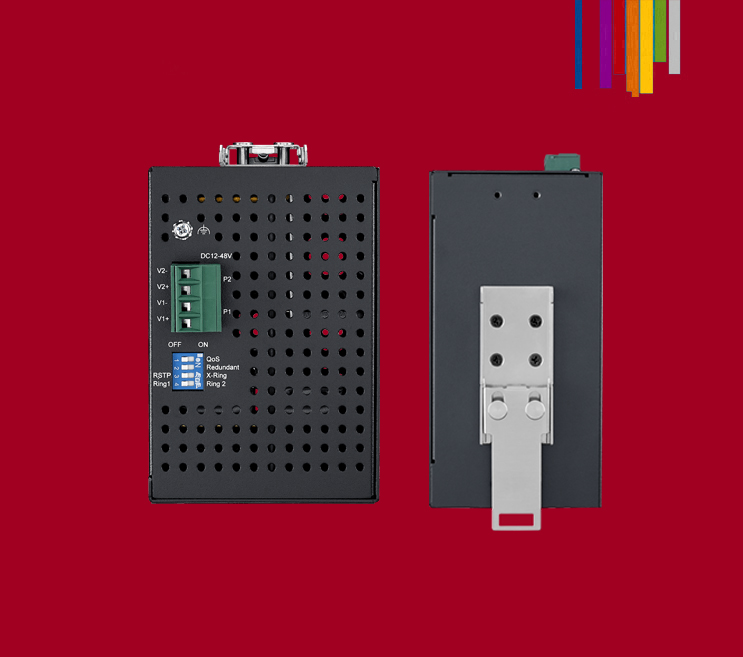

• Supports one-touch DIP Switch Configuration: QoS/ Redundancy
• Redundancy RSTP/STP/X-Ring function on two designated ports.
• Supports EMC Level 4 protection for extreme outdoor environments
• Supports LAN surge protection up to ±6 kV
• Supports wide operating temperatures from -40 to 75 °C
• Equipped with a pull-down DIN rail mounting kit for easy installation across various DIN rail dimensions and multi-angle installation

EKI-2716GI-R-A

Certification

EMI

CE, FCC Class A, BSMI

EMS

EN 61000-4-2 (Level 4), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 4), EN 61000-4-5 (Level 4), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 4)

Safety

UL 62368

Environment

Temperature (Min. Operating)

-40°C (-40°F)

Temperature (Max. Operating)

75°C (167°F)

Operating Temperature

-40 ~ 75°C (-40 ~ 167°F)

Storage Temperature

-40 ~ 85°C (-40 ~ 185°F)

Ethernet Communication

Fiber Port Number

-

Fiber Port Interface

-

Fiber Port Connector Type

-

Fiber Transmission Distance

-

Fiber Transmission Speed

-

RJ-45 Port Number

16

RJ-45 Port Connector Type

RJ-45

RJ-45 Transmission Distance

100 m

RJ-45 Transmission Speed

10/100/1000 Mbps

Mechanism

Mounting (DIN-rail)

Yes

Mounting (Stack)

-

Mounting (Panel)

-

Mounting (Wall)

Yes

Mounting (Rack Mount)

-

Mounting (Pole Mount)

-

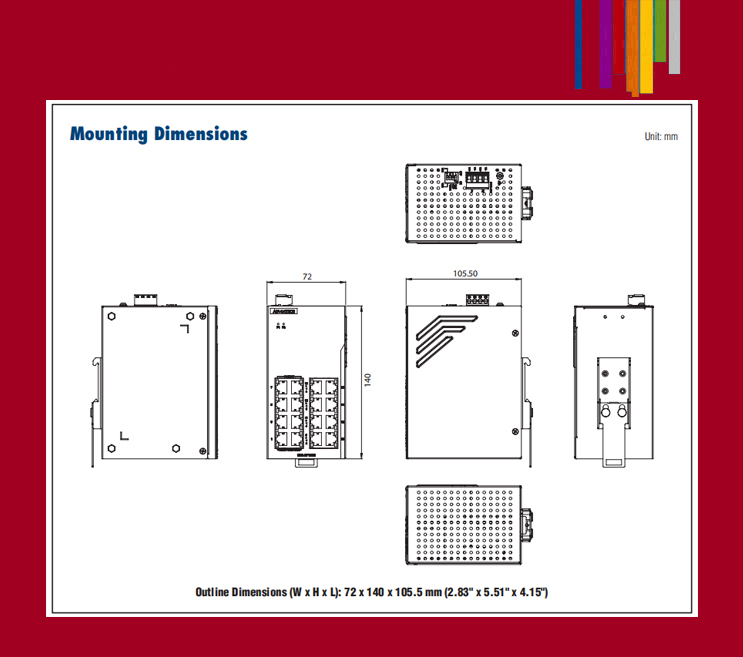

Dimensions (W x H x D)

72 x 140 x 105 mm

Enclosure (Plastic)

-

IP Rating

IP30

Weight

0.9 kg

PoE Information

PoE Port Number

-

PoE Budget

-

PoE Output

-

Support PoE

No

Power

Power Connector Type

4-pin removable terminal (power)

Power Consumption

Max. 9.6W

Power Input (AC)

-

Power Input (DC)

12 ~ 48 VDC

Power Input (PoE)

-

Power Input (Battery)

-

Power Operating Current

0.8A @ 12 V

Redundant Dual Inputs

Yes

Switch Properties

Jumbo Frame

10K bytes

MAC Table Size

8K

Packet Buffer Size

4.1M bit

Switch Fabric Speed

32Gbps

Warranty

Warranty Period

5 years

Protection

Overload Current

Present

Reverse Polarity

Present
