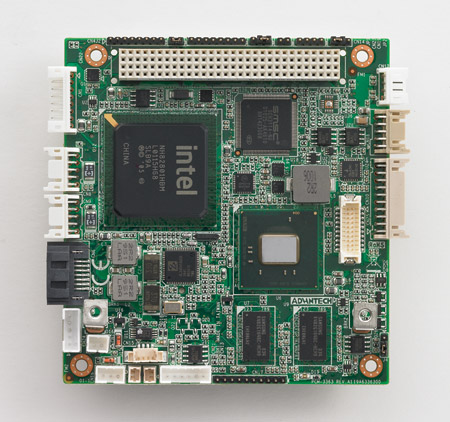

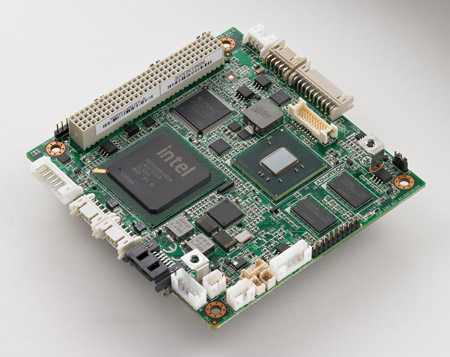

| PCM-3363D-1GS8A1E |
PCM-3363N-1GS6A1E |
| |
|
|
| Form Factor |
Form Factor |
PCI-104 |
PCI-104 |
| Processor |
CPU |
Intel Atom D525 |
Intel Atom N455 |
| Frequency |
1.8GHz |
1.66GHz |
| Core Number |
2 |
1 |
| L2 Cache |
1MB |
512KB |
| BIOS |
AMI 16 Mbit |
AMI 16 Mbit |
| Chipset |
Intel ICH8M |
Intel ICH8M |
| Memory |
Technology |
DDR3 800 MHz |
DDR3 800 MHz |
| Max. Capacity |
1GB |
1GB |
| Onboard Memory |
1GB DDR3 800 MHz Memory |
1GB DDR3 800 MHz Memory |
| Display |
Controller |
Intel Atom D525 |
Intel Atom N455 |
| Graphic Engine |
Gen 3.5 graphic core, DX9 compliant, MPEG2 Hardware Acceleration, 400 MHz |
Gen 3.5 graphic core, DX9 compliant, MPEG2 Hardware Acceleration, 200 MHz |
| Graphic Memory |
Shared system memory up to 224 MB |
Shared system memory up to 224 MB |
| VGA |
up to 2048 x 1536 |
up to 1400 x 1050(SXGA) |
| LCD (TTL/LVDS/eDP) |
LVDS: Single channel 18/24-bit up to 1366 x 768 (WXGA) |
LVDS: Single channel 18/24-bit up to 1366 x 768 (WXGA) |
| Multiple Display |
Dual |
Dual |
| Expansion |
SMBus |
1 (configurable to I2C by customer's request) |
1 (configurable to I2C by customer's request) |
| PC/104 |
1 |
1 |
| Ethernet |
Controller |
ICH8M + Intel 82567V (PHY) |
ICH8M + Intel 82567V (PHY) |
| Speed |
10/100/1000 Mbps |
10/100/1000 Mbps |
| Connector |
Locked Box Header |
Locked Box Header |
| Audio |
CODEC |
Intel High Definition audio interface (requires an audio extension module P/N: PCA-AUDIO-HDA1E) |
Intel High Definition audio interface (requires an audio extension module P/N: PCA-AUDIO-HDA1E) |
| Watchdog Timer |
WatchDog Timer |
Yes |
Yes |
| Storage |
SATA |
1 SATA II |
1 SATA II |

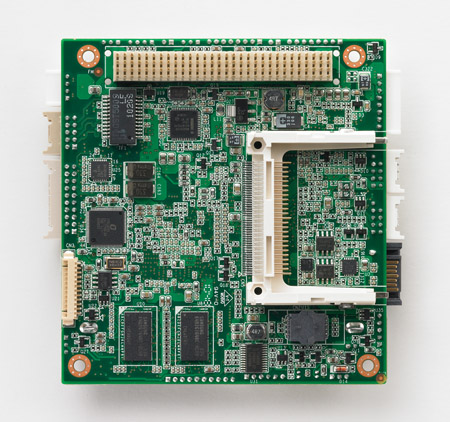

| CompactFlash |
1 CompactFlash socket (Type I/II) |
1 CompactFlash socket (Type I/II) |
| I/O |
USB2.0 |
4 |
4 |
| GPIO |
1 |
1 |
| COM Port |
3 (2 x RS-232, 1 x RS-422/485) |
3 (2 x RS-232, 1 x RS-422/485) |
| Keypad |
1 |
1 |
| Power |
Power Type |
AT/ATX |
AT/ATX |
| Power Supply Voltage |
5 V ± 5% only to boot up (12 V is optional for LCD inverter and add on card) |
5 V ± 5% only to boot up (12 V is optional for LCD inverter and add on card) |
| Power Consumption (Idle) |
1.85 A @ +5 V (9.25 Watt) |
1.404A @ +5 V (7.02 Watt) |
| Power Consumption (Full Load) |
2.695 A @ +5 V (13.475 Watt) |
2.365A @ +5 V (11.825 Watt) |
| Battery |
Lithium 3 V / 210 mAH |
Lithium 3 V / 210 mAH |
| Environment |
Operational Temperature |
0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 85% RH non-condensing) |
0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 85% RH non-condensing) |
| Non-Operational Temperature |
-40° C ~ 85° C and 60° C @ 95% RH non-condensing |
-40° C ~ 85° C and 60° C @ 95% RH non-condensing |
| Physical |
Dimension (mm) |
96 x 90 mm (3.8" x 3.5") |
96 x 90 mm (3.8" x 3.5") |
| Weight |
0.664 kg (1.46 lb) (with heat-sink) |
0.664 kg (1.46 lb) (with heat-sink) |
| Operating System |
Microsoft Windows |
Yes |
Yes |
| Linux |
Yes |
Yes |
| SUSIAccess |
Yes |
Yes |
| Certification |
EMC |
CE, FCC |
CE, FCC |
