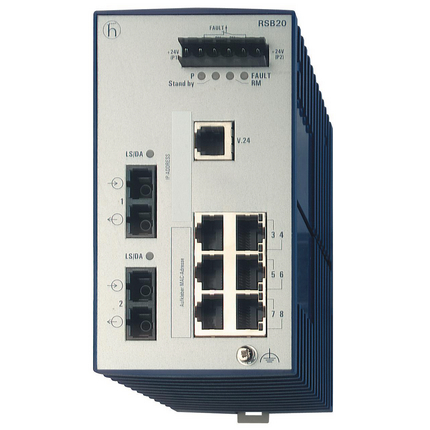

赫斯曼交換機(jī)RSB20-0800S2S2TAABHH |
|
日期:2021/11/18 23:33:39
|
| Description |
Compact, managed Ethernet/Fast Ethernet Switch according to IEEE 802.3 for DIN Rail with Store-and-Forward-Switching and fanless design |
| Port type and quantity |
8 ports in total 1. uplink: 100BASE-FX, SM-SC 2. uplink: 100BASE-FX, SM-SC 6 x standard 10/100 BASE TX, RJ45 |
| Power supply/signaling contact |
1 x plug-in terminal block, 6-pin |
| V.24 interface |
1 x RJ11 socket |
| Twisted pair (TP) |
0-100 m |
| Single mode fiber (SM) 9/125 μm |
1. uplink: 0 - 32.5 km, 16 dB Link Budget at 1300 nm, A = 0.4 dB/km, 3 dB reserve, D = 3.5 ps/(nm x km) 2. uplink: 0 - 32.5 km, 16 dB Link Budget at 1300 nm, A = 0.4 dB/km, 3 dB reserve, D = 3.5 ps/(nm x km) |
| Line - / star topology |
any |
| Ring structure (HIPER-Ring) quantity switches |
50 (reconfiguration time 0.3 sec.) |
| Operating Voltage |
24V DC (18-32)V |
| Switching |
Fast aging, Static unicast/multicast address entries, QoS / Port prioritization (802.1D/p), TOS/DSCP prioritization, IGMP Snooping/Querier (v1/v2/v3) |
| Redundancy |
HIPER-Ring (Manager), HIPER-Ring (Ring Switch), Media Redundancy Protocol (MRP) (IEC62439-2), RSTP 802.1D-2004 (IEC62439-1) |
| Management |
TFTP, LLDP (802.1AB), V.24, HTTP, Traps, SNMP v1/v2/v3 |
| Diagnostics |
Signal contact, Device Status Indication, LEDs, RMON (1,2,3,9), Port Mirroring 1:1, System information, Self tests on cold start, SFP management (temperature, optical input and output power) |
| Configuration |
Auto-Configuration Adapter ACA11 limited support (RS20/30/40,MS20/30), Automatic configuration undo (roll-back), Auto-Configuration Adapter ACA11 full support, BOOTP/DHCP client with auto configuration, HiDiscovery, DHCP Relay with Option 82, Command Line Interface (CLI), Full featured MIB support, WEB based management, Context sensitive help |
| Security |
Local user management |
| Time synchronisation |
SNTP Client, SNTP Server |
| Miscellaneous |
Manual cable crossing |
| Operating temperature |
-40-+70 °C |
| Storage/transport temperature |
-40-+85 °C |
| Relative humidity (non-condensing) |
10-95 % |
| Dimensions (WxHxD) |
74 mm x 131 mm x 111 mm |
| IEC 60068-2-6 vibration |
1 mm, 2 Hz-13.2 Hz, 90 min.; 0.7 g, 13.2 Hz-100 Hz, 90 min.; 3.5 mm, 3 Hz-9 Hz, 10 cycles, 1 octave/min.; 1 g, 9 Hz-150 Hz, 10 cycles, 1 octave/min |
| IEC 60068-2-27 shock |
15 g, 11 ms duration, 18 shocks |
| EN 61000-4-2 electrostatic discharge (ESD) |
6 kV contact discharge, 8 kV air discharge |
| EN 61000-4-3 electromagnetic field |
10 V/m (80-1000 MHz) |
| EN 61000-4-4 fast transients (burst) |
2 kV power line, 1 kV data line |
| EN 61000-4-5 surge voltage |
power line: 2 kV (line/earth), 1 kV (line/line), 1 kV data line |
| EN 61000-4-6 Conducted Immunity |
3 V (10 kHz-150 kHz), 10 V (150 kHz-80 MHz) |
| EN 55032 |
EN 55032 Class A |
| Basis Standard |
CE, FCC, EN61131 |
| Safety of industrial control equipment |
cUL 508 |
| Hazardous locations |
ISA 12.12.01 Class 1 Div. 2 |
| Accessories |
Rail Power Supply RPS 30, RPS 60, RPS90 or RPS 120, terminal cable, network management Industrial HiVision, auto-configuration adpater ACA11-RJ11 EEC, 19" installation frame |
| Scope of delivery |
Device, terminal block, general safety instructions |
|
|
