IPC-940/AIMB-701VG/I3 3320/I5 2400/I7 2600

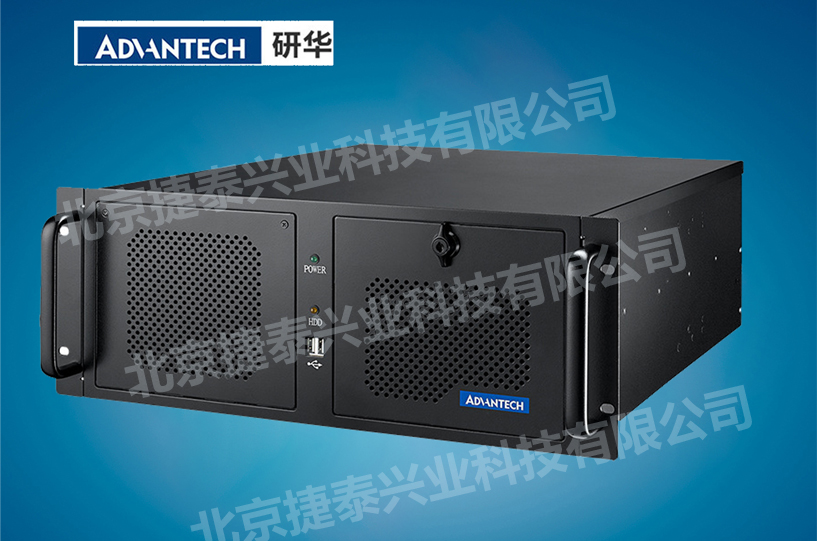

經典款4U機架式機箱，帶前置風扇

更多圖片

4U機架式機箱，可支持ATX/uATX工業主板

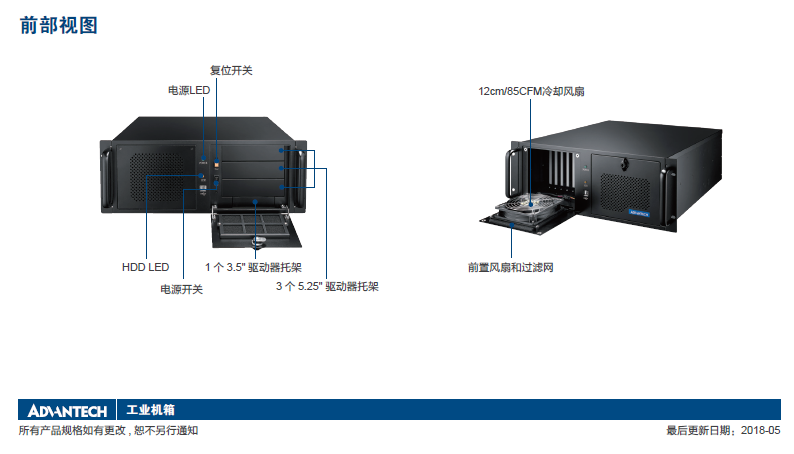

抗震動磁盤架設計，可支持3個5.25寸光驅和1個3.5寸硬盤

獨特的固定壓條設計帶有橡膠墊腳，可以防止卡受到?jīng)_擊或振動造成的損壞

人性化設計的前置過濾裝置，易于維護

可鎖附前門板設計，防止未經授權的操作

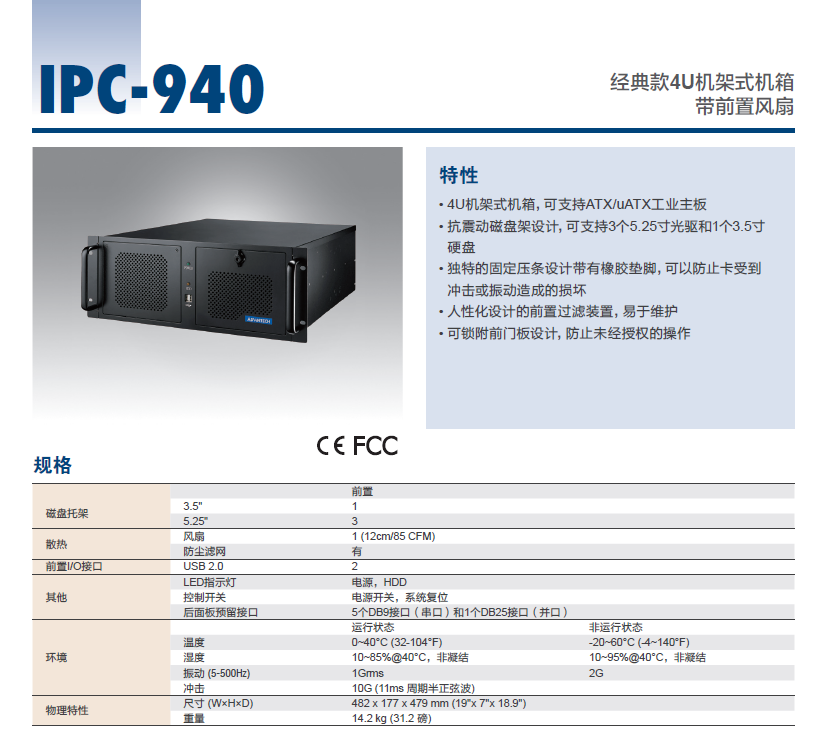

規格

Part Number

相關訊息

IPC-940MB-25Z

Disk Drive Bay

3.5" External Bay

5.25 External Bay

1

3

Cooling

Air Filter

Fan

Yes

1 (12 cm / 85 CFM)

Miscellaneous

Rear Panel

LED Indicators

Control

Five 9-pin D-Sub and one 25-pin D-Sub openings

Power, HDD activity

Power switch and system reset button

Environment

Operating-Temperature

Non-Operational Temperature

Operating Humidity

Non-Operating Humidity

Operating Vibration (5 ~ 500 Hz)

Non-Operating Vibration (5 ~ 500 Hz)

Shock

0 ~ 45

-20 ~ 60° C (-4 ~ 140° F)

10 ~ 85% @ 40° C, non-condensing

10 ~ 95% @ 40° C, non-condensing

1 Grms

2 G

10 G (with 11 ms duration, half sine wave)

Physical Characteristics

Weight

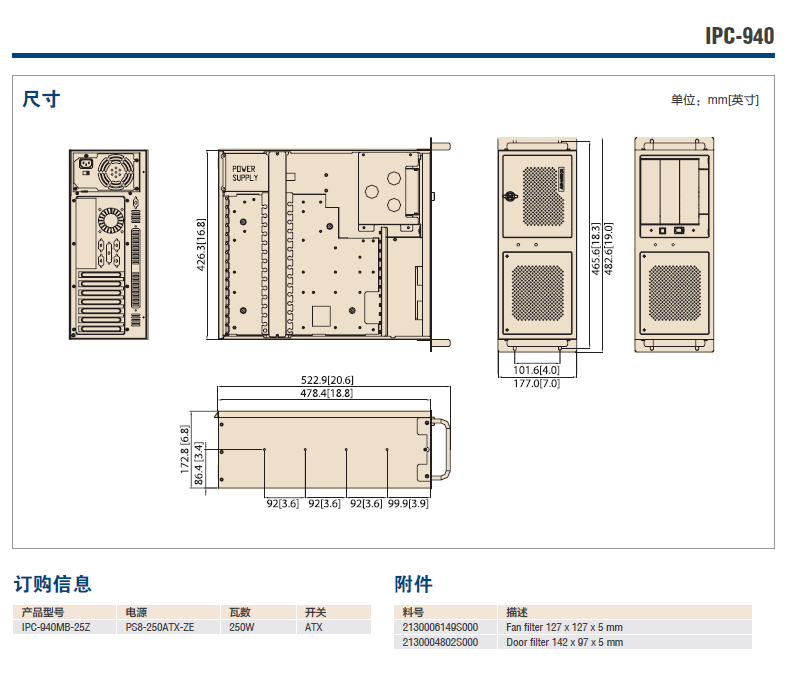

Dimensions (W x H x D)

14.5 kg ( 31.9 lb )

482 x 177 x 479 mm (19'' x 7'' x 18.9'')
